Fittings 74 Degree Hydraulic Hose Nipple Female Barb Joint Double Hexagon 26711D
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Technics: | Forged | Connection: | Female |
| Shape: | Equal | Head Code: | Round |
| Standard: | JIC/JIS/METRIC/BSP | Surface Treatment: | Transparent Oil, Rust-proof Black Oil Or Hot Galvanized |
| Customization: | Available | Application: | Gas & Oil Hose & High Pressure Equipment |
| Color: | White & Black | Certificate: | API, ISO9001 |
| Dimensions: | As Customers' Request | Free Sample: | Available |
| OEM: | Available | Min Order: | 1000 Pieces In All |
| Port: | Tianjin Port |

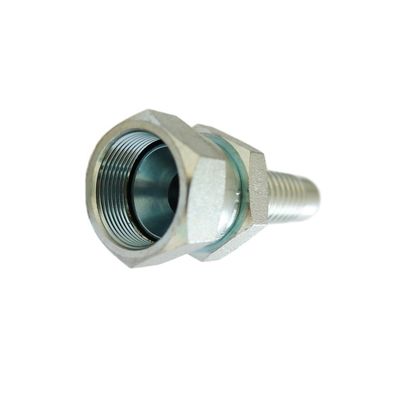

Hydraulic Hose Fittings 74 Degree Female Barb Joint Double Hexagon 26711D
double hexagon
1.Material:stainless steel,carbon steel,brass
2.Standard: JIC/JIS/METRIC/BSP
3.Mark:According to customer's requirement
4.Sizes:Standard & Nonstandard
5.Surface: Transparent oil, rust-proof black oil or hot galvanized .
6.Material:carbon steel & Stainless Steel
7.Delivery time:Normally in 5-25 days.
8.Min Order:1000 pieces in all,including other products.
9.Package:Cartons&pallets or in accordance with the requirement of customers.
10.Certificate:ISO9001,API
| Part No. | E | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 26711D-04-04 | 7/16"x20 | 6 | 04 | 20 | 9 | 15 | 15 |
| 26711D-05-05 | 1/2"x20 | 8 | 05 | 20 | 9.5 | 14 | 17 |
| 26711D-06-06 | 9/16"x18 | 10 | 06 | 21 | 10.5 | 19 | 19 |
| 26711D-08-08 | 3/4"x16 | 12 | 08 | 24.5 | 11 | 24 | 24 |
| 26711D-10-10 | 7/8"x14 | 16 | 10 | 29 | 13 | 27 | 27 |
| 26711D-12-12 | 1.1/16"x12 | 20 | 12 | 31.5 | 15 | 32 | 32 |
| 26711D-16-16 | 1.5/16"x12 | 25 | 16 | 34.5 | 16 | 41 | 41 |
| Note:For one or two wire braid hoses use only.If use with 4 wire spiral hoses,hose fitting series number is 26711D-xx-xx. | |||||||
Company Information
Welcome to Hejian Jieda Hydraulic Fittings Co.Ltd!
The factory specializes in the production of sets of rubber tube assembly and many kinds of hydraulic pipe joints and hydraulic hose fittings. The main products include ferrule,nipple, union,adapter,flange,nut,tee,elbow,outlets,banjo,staple-lok,oil plug and some other hydraulic joints. We have all kinds of thread standards including METRIC,ISO,JIC,BSP,SAE,JIS,ORFS,MT,etc.
We offer a complete product line of over 500 different styles and sizes for braided hose couplings. From 1/4" I.D. to 1-1/2” I.D., our selection should make it easy to find the right size and style for your hydraulic application.
We provide products with high quality and competitive price. We also provide OEM service. If the products you want we do not display on our website, please send us the design drawing or the size.
Packaging & Shipping
Packing
Inner packaging
Plastic bags
Retail packaging
For export, we usually use wooden cases and wooden pallet outside.
custom packaging
We can pack goods as clients’ requirements.
Shipping
Sample shipping
For sample order,we usually transfer by express.
Formal order shipping
For formal order,we usually transfer by sea transportation.
