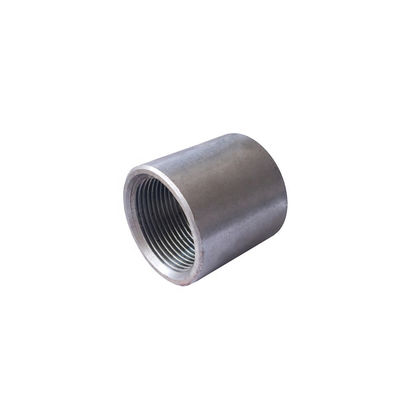

Different Sizes Available Carbon Steel pipe coupling ,Swivel Barb Pipe Fittings ,pipe coupling fittings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Technics: | Forged | Connection: | Female |
| Shape: | Equal | Head Code: | Round |
| Standard: | BSPT/JIC/JIS/METRIC | Surface Treatment: | Galvanized |
| Custom Service: | Available | Free Sample: | Available |
| OEM Service: | Available | Color: | Gold Or Silver |
| Application: | Insert Hose Nipple And Ruber Hose | Dimensions: | Customers' Requiry |
| Port: | Tianjin Port |
Different Sizes Available Carbon Steel pipe coupling ,Swivel Barb Pipe Fittings ,pipe coupling fittings
Standard:
00400
Ferrule for 4SP,4SH/12-16 ,R12/06-16Hose
| Part No. | Hose Bore | Hose Bore | Dimension | Dimension |
| DN | DASH | D | L | |
| 00400-04 | 6 | 04 | 22 | 37.5 |
| 00400-06 | 10 | 06 | 25.5 | 39 |
| 00400-08 | 12 | 08 | 29 | 41 |
| 00400-10 | 16 | 10 | 32.5 | 43 |
| 00400-12 | 20 | 12 | 37 | 51 |
| 00400-16 | 25 | 16 | 46.5 | 61.5 |
| 00400-20 | 32 | 20 | 57 | 67.5 |
| 00400-24 | 40 | 24 | 65 | 75 |
| 00400-32 | 50 | 32 | 79 | 79 |
01400
Ferrule For R12/20 Hose
| PART NO. | HOSE BORE | HOSE BORE | DIMENSION |
| 01400 | DN | DASH | L |
| 01400 | 10 | 06 | 39 |
| 01400 | 12 | 08 | 41 |
| 01400 | 16 | 10 | 43 |
| 01400 | 20 | 12 | 51 |
| 01400 | 25 | 16 | 61.5 |
01100
Ferrule For China1-Wire Hose
| PART NO. | HOSE BORE | HOSE BORE | DIMENSION | DIMENSION |
| DN | DASH | D | L | |
| 01100-03 | 4 | 3 | 17 | 28 |
| 01100-04 | 6 | 4 | 19 | 30 |
| 01100-05 | 8 | 5 | 21 | 32 |
| 01100-06 | 10 | 6 | 23 | 32 |
| 01100-8 | 12 | 8 | 28 | 34 |
| 01100-10 | 16 | 10 | 31 | 39 |
| 01100-12 | 20 | 12 | 34 | 43 |
| 01100-14 | 22 | 14 | 37 | 43 |
| 01100-16 | 25 | 16 | 41 | 50 |
| 01100-20 | 32 | 20 | 49 | 59 |
| 01100-24 | 40 | 24 | 55 | 74 |
01200
Ferrule for China 2- Wire Hose
| PART NO. | HOSE BORE | HOSE BORE | DIMENSION | DIMENSION |
| DN | DASH | D | L | |
| 01200-04 | 6 | 04 | 21 | 30 |
| 01200-05 | 8 | 05 | 23 | 32 |
| 01200-06 | 10 | 06 | 25 | 32 |
| 01200-08 | 12 | 08 | 31 | 34 |
| 01200-10 | 16 | 10 | 34 | 39 |
| 01200-12 | 20 | 12 | 37 | 43 |
| 01200-14 | 22 | 14 | 40 | 43 |
| 01200-16 | 25 | 16 | 43 | 50 |
| 01200-20 | 32 | 20 | 51 | 59 |
| 01200-24 | 40 | 24 | 57 | 74 |
| 01200-28 | 45 | 28 | 64 | 74 |
| 01200-32 | 50 | 32 | 70 | 78 |
Other main standard ferrule
00401 Ferrule For 4SH/20-32 Hose
00210 Ferrule For SAE 100 R2AT/EN 853 2SN Hose
03310 Ferrule For SAE 100 R2AT/EN 853 2SN Hose
00110 Ferrule For SAE 100 R1AT/EN 853 1SN Hose
00110-A Ferrule For SAE 100 R1AT/EN 853 1SN Hose
00621 Interlock Ferrule For R13 Hose
We are factory supplier and able to produce either standard or nonstandard products.If the ferrule you want don't display here ,please contact with me.
Related products:
Company Information
Welcome to Hejian Jieda Hydraulic Fittings Co.Ltd!
The factory specializes in the production of sets of rubber tube assembly and many kinds of hydraulic pipe joints and hydraulic hose fittings. The main products include ferrule,nipple, union,adapter,flange,nut,tee,elbow,outlets,banjo,staple-lok,oil plug and some other hydraulic joints. We have all kinds of thread standards including METRIC,ISO,JIC,BSP,SAE,JIS,ORFS,MT,etc.
We offer a complete product line of over 500 different styles and sizes for braided hose couplings. From 1/4" I.D. to 1-1/2” I.D., our selection should make it easy to find the right size and style for your hydraulic application.
We provide products with high quality and competitive price. We also provide OEM service. If the products you want we do not display on our website, please send us the design drawing or the size.
Product Overviews
Click belowing pictures, find more products!!!!!
Product line
Packaging & Shipping
Packing
Inner packaging
Plastic bags
Retail packaging
For export, we usually use wooden cases and wooden pallet outside.
custom packaging
We can pack goods as clients’ requirements.
Shipping
Sample shipping
For sample order,we usually transfer by express.
Formal order shipping
For formal order,we usually transfer by sea transportation.
